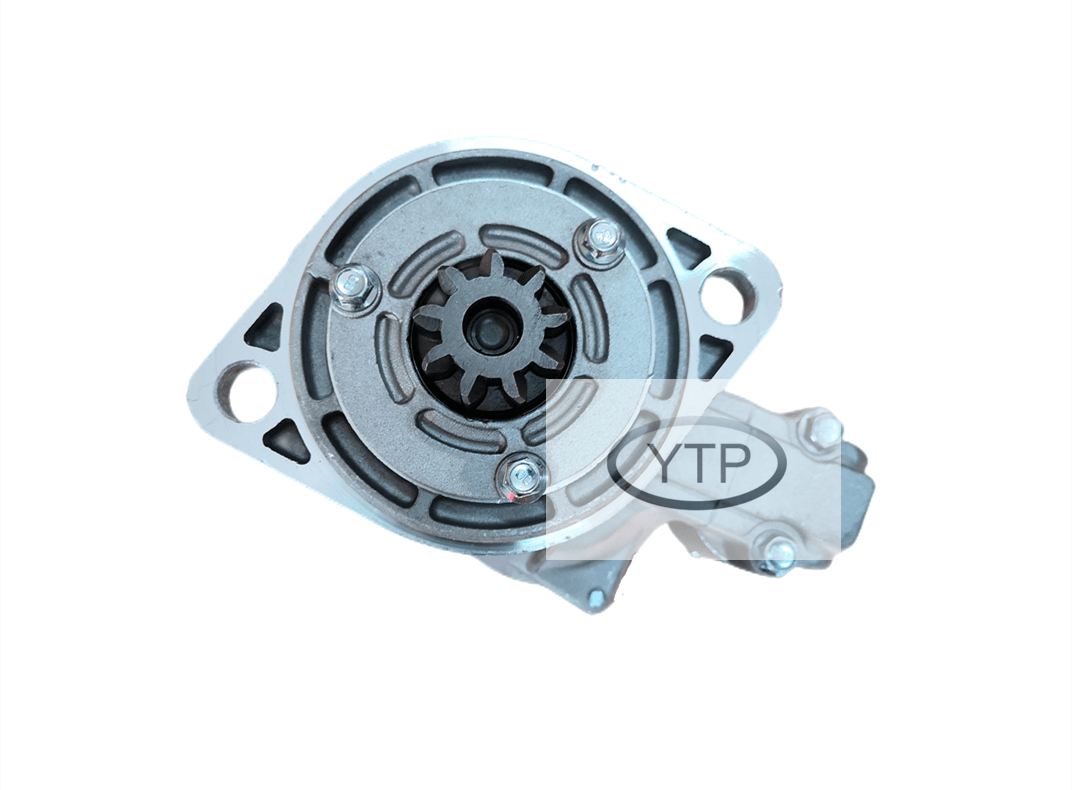

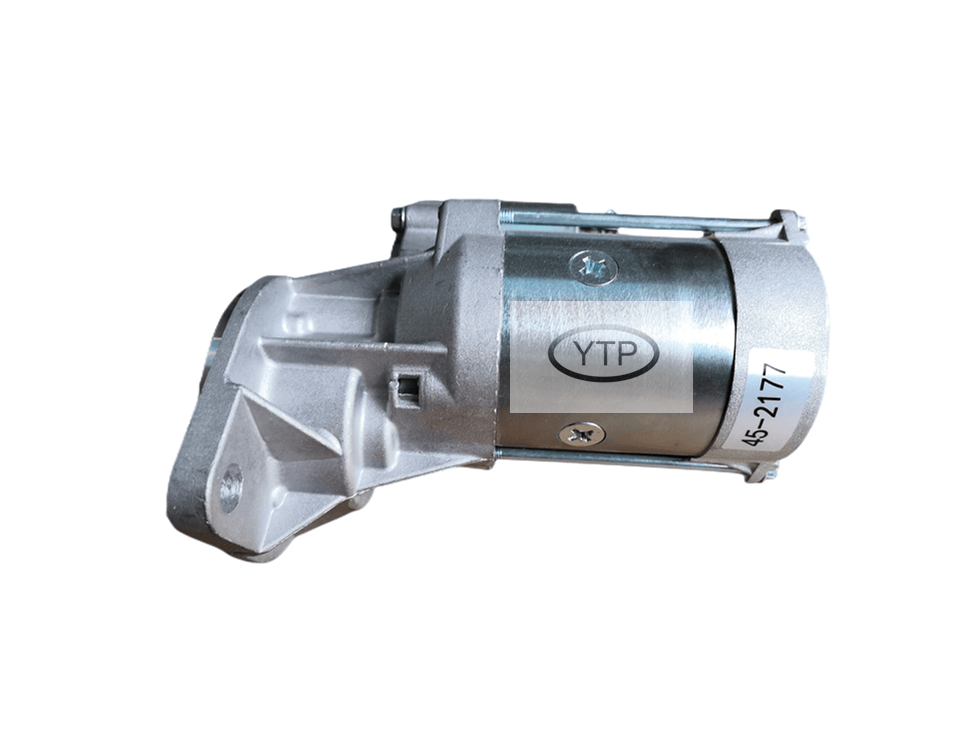

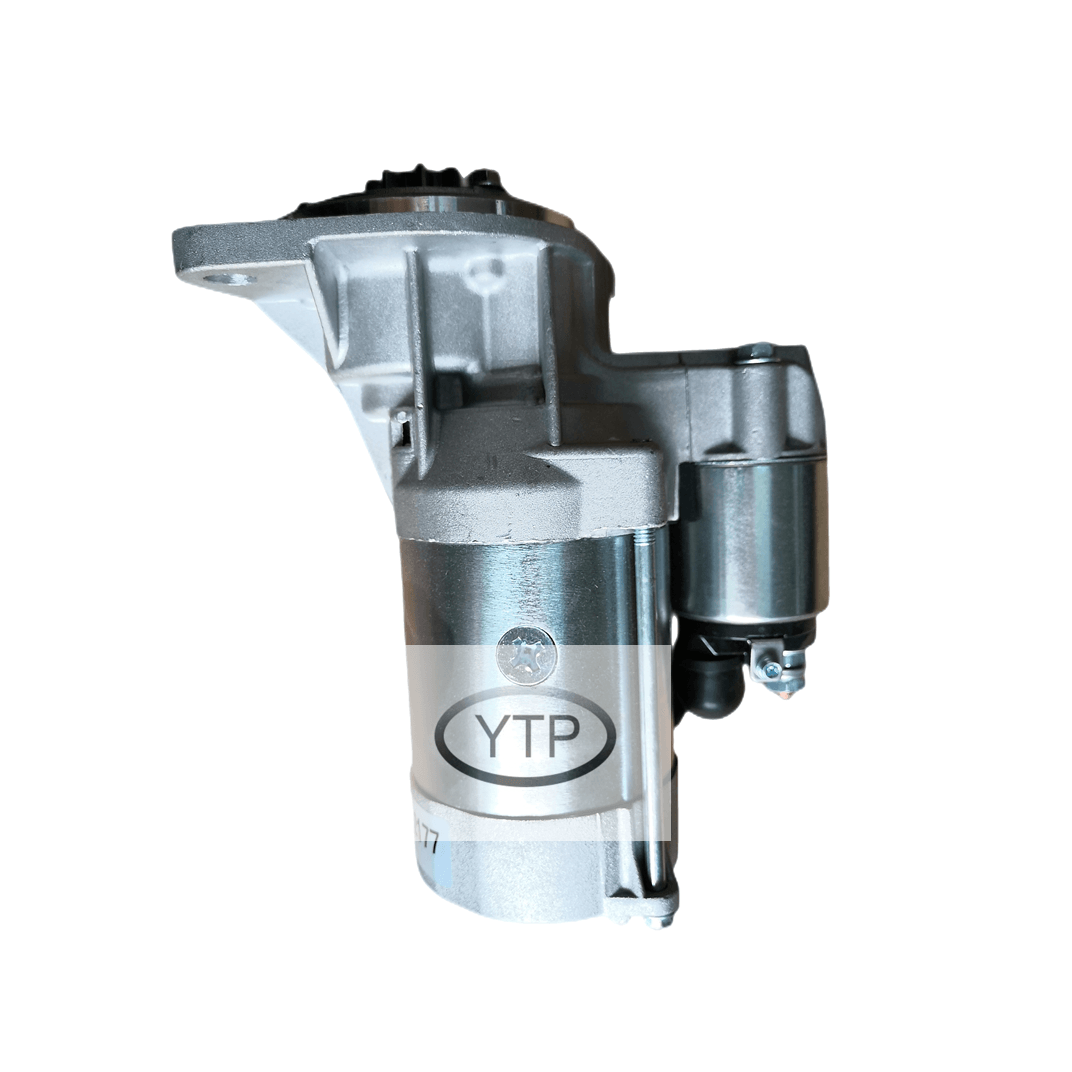

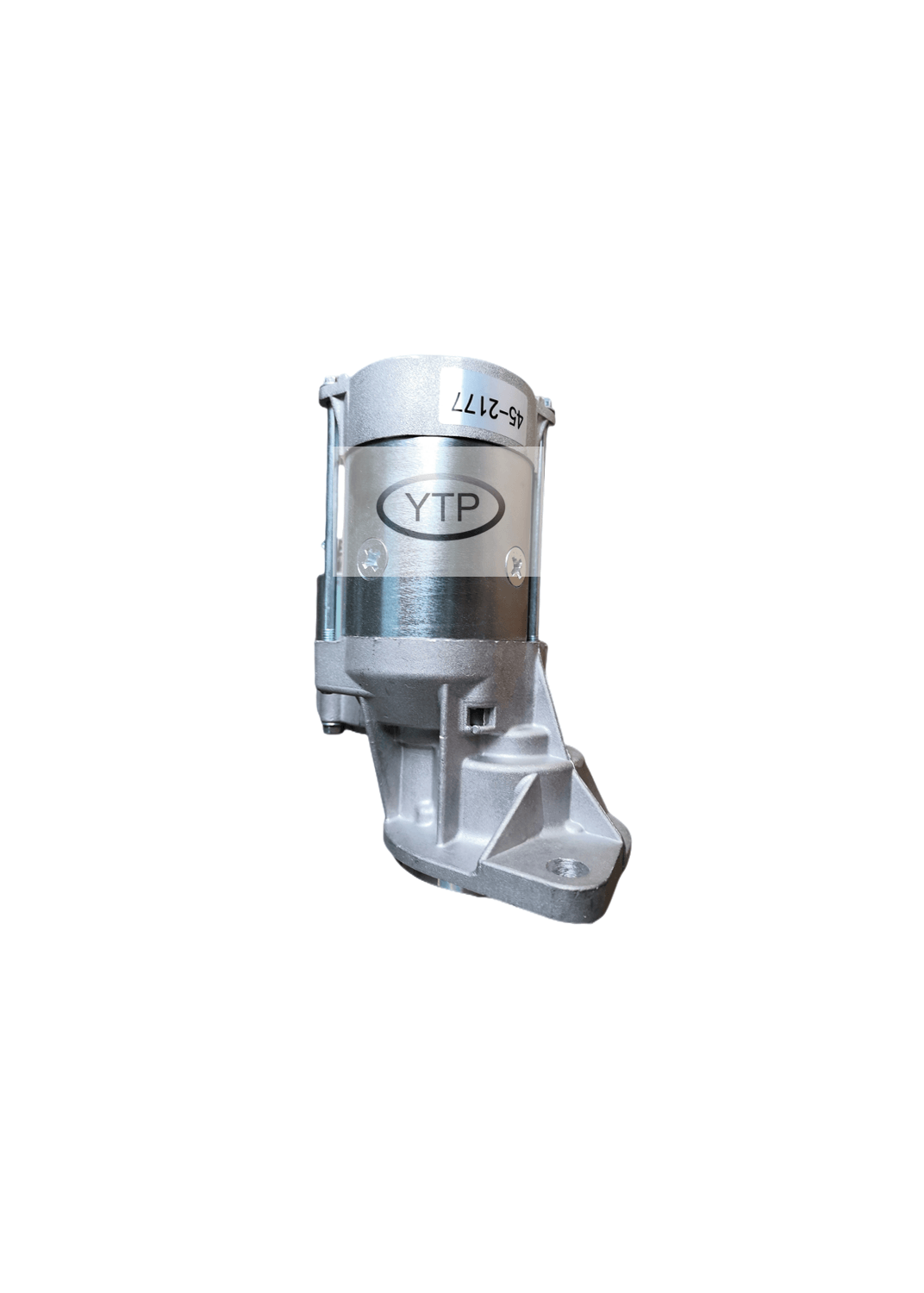

Starter Motor

To Suit: Engines Yanmar 486V, 4.86V, 4,86V- 4TNE88 Tier 1,2,4

Voltage: 12

Power: 2.2 kW

Rotation: CW

Starter Type: OSGR

Number of Teeth: 9

Mounting:13.0mm Unthreaded (2)

Gear Outside Diameter: 35.0012 mm

Note:  45-2177 HAS BEEN REPLACED BY THE BRAND NEW PART No 45-2753 AS OF 6TH NOVEMBER 2017

A: Mount. flange 95.00

I: B+ M8

No./mount. holes 2 (0)

B: Drive dist. 21.30

E: Mount. holes 13.00

E: Mount. hole 2 13.00

F: Dist./back 191.00

G: Dist./front 21.30

M: Mount. bracket No

O: Dist. mm 120.00

R: Total length mm 213.00

ModelsTypes

SLXi SLXi Spectrum / 400 / 300 Whisper Pro / 200 / 100 / 200-50 / 300 Whisper Pro-50 / 400-50 / Spectrum-50

Spectrum 50 / DE / SB 30

SB 100 / 110 / 190 / 200 / 210+ / 230+ / 300 / 310+ / 400 / 30 Multi-Temp / 330 / 130 / 310 / 210 / 230 / 230-50 / 210-50

SLX 400 SLX Whisper / 400 / 300 / 200 / 400 50 / Spectrum / 100 / 300-50 / 300e-50 / 400-50 / 400e-50 / Spectrum-50

Super II

PRECEDENT 610DE 600M / S-600 / S-700 / S-700 smartpower / C-600 / 600M 610M / G-600 / G-700

SL 400e / 200e / 100 / 200 / 300 / 400 / 100e / SPECTRUM / Multi-Temp / SL-400e SR2

SLXe 300 / 200 / 400 / Spectrum / 400-50 / 300-50 / 200-50 / Spectrum-50

Advancer A500 / A400 / A360
